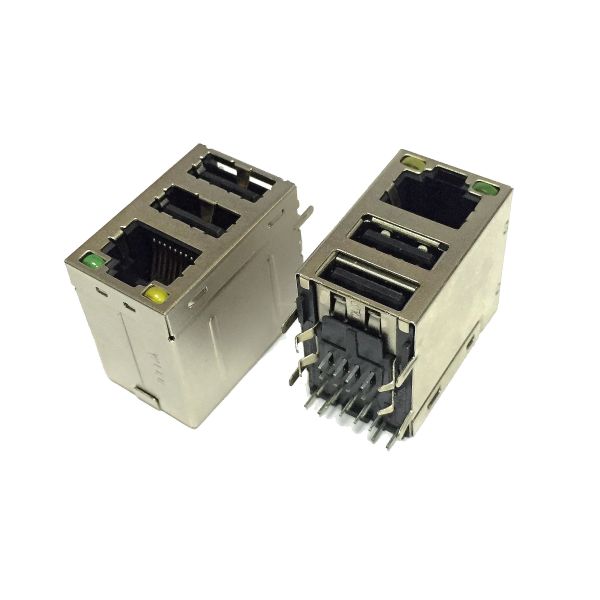

Module Jack RJ45 Over Dual USB with LED

Name: Module Jack RJ45 Over Dual USB with LED
Brand: Heling
Price: 0.2 USD

Place of Origin : China

Brand Name : Heling

Model Number : MU88-BX31-RL3

Certification : ROHS, SGS

Price : 0.2-0..99 USD

Packaging Details : Tray or tape and reel

Delivery Time : 2-5 weeks

Payment Terms : T/T in advance

Supply Ability : 500k per month

MOQ : 1000PCS

Contact Now

Product description: Modular JackRJ45over dual USB with LED, shielded

Material

Insulator:High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area

Shield:Copper alloy with nickel plating

LED:Tin plating on LED tail. Epoxy lens.

Electrical Characteristics

Voltage Rating:125 V AC(RMS)
Current Rating:1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000 VAC RMS 60Hz, 1 Min.

Mechanical Characteristics

Durability:750 mating & unmating cycles

Mated Retention Force: 7.7kg

Operating Temperature:-40°C to +85°C

Product Tags:

Modular Jack with USB

RJ45 jack over USB

RJ45 connectors with USB

Buy cheap Module Jack RJ45 Over Dual USB with LED product

Module Jack RJ45 Over Dual USB with LED Images
